How Bioreactors Cut Tissue Culture Labor by Half

Anjali Singh, MS

As a content and community manager, I leverage my expertise in plant biotechnology, passion for tissue culture, and writing skills to create compelling articles, simplifying intricate scientific concepts, and address your inquiries. As a dedicated science communicator, I strive to spark curiosity and foster a love for science in my audience.

Table of Contents

Introduction

Have you ever stopped to calculate the true human and resource cost of every single plantlet leaving your tissue culture lab?

For many in the micropropagation industry, the answer is a sobering one: conventional production methods are simply too dependent on manual labor for true industrial scale. The reliance on human intervention, the struggle with inconsistent quality, and the sheer volume of space required for agar jars are not just inefficiencies—they are the single greatest bottleneck preventing the industry from reaching its full commercial potential.

The good news?

A quiet, technological revolution is underway. The shift from labor-intensive, gel-based propagation to automated, liquid-based bioprocessing is not just an upgrade; it's a fundamental operational restructuring.

This strategic transition, powered by sophisticated bioreactor technology, is proving to be the only viable pathway to achieve the high yields and optimized overhead necessary for high-volume commercial markets and the growing field of molecular farming.

Case studies have already proven the transformative power of this intensification: we've seen a 10-fold increase in bulblet growth for Lilium and a staggering 5.5-fold increase in propagation rates for date palm, accelerating production cycles and maximizing output from existing culture rooms.

Operationally, this change is stark: the contribution of labor to variable costs can drop dramatically from 43% in traditional agar systems to just 24% in intensified systems like Temporary Immersion Systems (TIS).

This analysis will guide you through the operational necessity, the technical options, and the strategic implementation of bioreactor technology, including an in-depth look at critical innovations like the Plant Cell Technology (PCT) Biocoupler® system, which democratizes advanced culture for operations of any size.

The Operational Necessity for Bioreactors

If you're still relying primarily on semi-solid agar culture, you're wrestling with inherent inefficiencies that cap your scalability. The industry's reliance on highly skilled, labor-intensive work represents the "single greatest bottleneck" that consistently drives operational effort through the roof.

The Inherent Limits of Conventional Agar Culture

Consider the structural characteristic of your variable effort: your dependence on manual processes means that skilled labor accounts for a staggering 43% of the variable production expenditure in traditional agar culture. This limits your ability to achieve high volume across all but the most specialized, high-value crops.

This reliance on human capital for routine tasks—like media preparation, vessel transfers, and subculturing—is operationally restrictive and prone to human error.

Beyond the intensity of human capital required, traditional systems suffer from significant quality and survival issues that directly impact overall yield. A common physiological problem encountered in sealed culture vessels is hyperhydricity (waterlogging), which results from poor gas exchange.

This physiological stress can lead to the catastrophic loss of up to 70% of plants during the crucial acclimatization stage when they are transferred out of the sterile environment. This potential for massive loss provides the most powerful operational justification for adopting advanced systems that actively mitigate these physiological issues through controlled aeration.

Defining Intensification: Yield, Time, and Resource Optimization

Bioreactors facilitate intensification by improving growth conditions and automating manual transfers, resulting in gains across multiple dimensions, including:

• Faster multiplication rates and accelerated production cycles.

• Higher net biomass accumulation and denser cultures.

• Enhanced secondary metabolite production for biopharma applications.

The strategic implementation of liquid-based systems, specifically TIS, fundamentally shifts the profile of Operational Expenditures (OPEX). By automating the most tedious and costly labor steps—nutrient provision and gas exchange—the primary variable effort shifts away from skilled labor.

In TIS, labor contribution drops sharply, and the highest expenditure category transitions to materials and reagents, accounting for 44% of the variable effort. This shift is strategically important because labor demands are often fixed and difficult to reduce per unit of output, whereas material consumption can be optimized through precise biochemical protocol adjustments (e.g., reduced nutrient concentrations).

The Different Types of Bioreactors in Plant Tissue Culture

Bioreactor systems are fundamentally classified based on the nature of the culture environment and the method used to ensure adequate mass transfer of nutrients and gases.

Classification by Culture Phase

The primary classification organizes bioreactors based on the continuous phase of the cell suspension cultures they utilize:

1. Liquid-phase Bioreactors: The culture is continuously submerged in liquid media and requires mechanical or pneumatic agitation for mixing and oxygen transfer.

2. Gas-phase Bioreactors: These systems involve high headspace relative to the culture medium, often used for static culture but less common for high-volume liquid systems.

3. Hybrid Bioreactors: These combine elements of both, with the culture alternating between liquid immersion and exposure to a gaseous atmosphere. The most prominent example is the Temporary Immersion System (TIB).

Key Bioreactor Systems for Plant Cells

Plant cells are notably sensitive to mechanical shear stress due to their large, aggregated nature. This fragility necessitates the use of specialized designs that minimize physical damage while still ensuring uniform media distribution and oxygenation.

• Airlift Bioreactors (ALBs): These are widely favored due to their low shear stress advantage. Instead of relying on mechanical impellers, ALBs use sterile air bubbles pumped from the bottom (often through a circular sparger) to circulate the media and achieve necessary aeration. This design is highly effective for cell suspension cultures, ensuring mass flow and reduced stress.

• Continuous Stirred-Tank Reactors (CSTRs): While standard in microbial fermentation, CSTRs utilize mechanical stirring and are generally avoided for plant cell culture because the high agitation causes excessive shear stress and damage to the fragile plant cells.

• Single-Use Bioreactors (SUBs): These disposable systems are gaining traction due to their zero-cleaning requirement, which reduces operational time and contamination risk. A key innovation within SUBs are those based on rocking motions (like wave-induced bioreactors). These lack traditional stirring agitation, offering low shear stress and are considered optimal mixing systems for plant cell cultures prone to aggregation.

• Specialized Bioreactors for Hairy Roots: For the production of certain secondary metabolites, hairy root cultures are preferred. Specialized bioreactors often use internal hangers or mesh supports to maintain these cultures, allowing for continuous media flow and harvest of the valuable components.

The Operational Payoff: Efficiency and Throughput

The adoption of intensified systems provides quantitative improvements that translate directly into reduced operational expenditure and enhanced productivity.

Quantifying Labor Efficiency and Throughput

The adoption of TIS results in the generation of plants that require approximately two times less labor effort than those grown in agar cultures. This efficiency is achieved by restructuring the allocation of required work hours. As noted, in a Temporary Immersion System, labor constitutes only 24% of the variable effort, a highly significant reduction from the 43% observed in traditional agar culture.

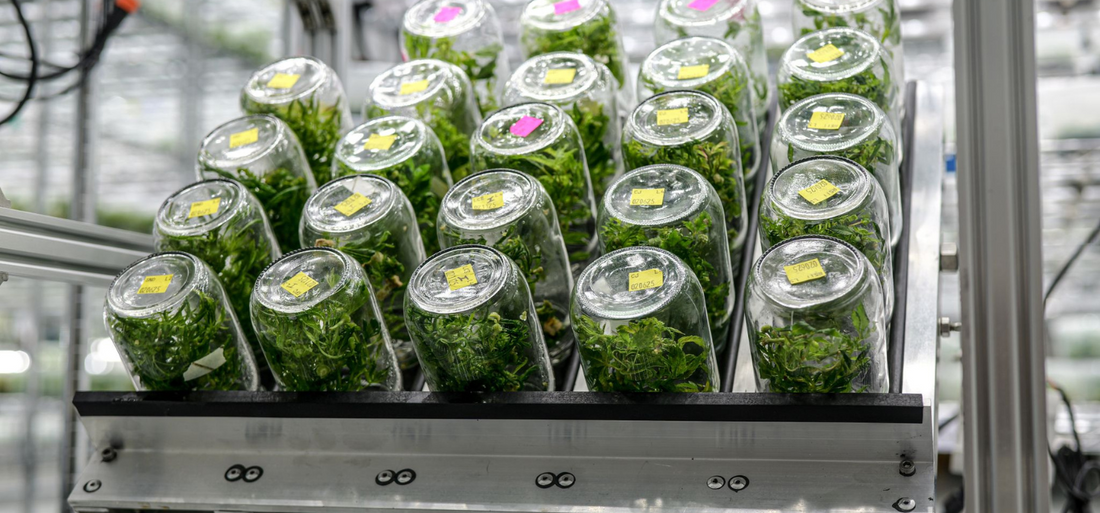

Beyond cost-per-unit, bioreactor technology dramatically improves throughput efficiency. Systems like the PCT Biocoupler® and BioTilt facilitate the rapid handling of plant material; for example, a single technician can successfully transfer over 200 plants to new containers in just two hours, a rate of efficiency that is commercially critical when scaling production volume.

Resource Optimization in Biopharma Production

For industrial applications involving high-value, plant-made biopharmaceuticals (molecular farming), process intensification is paramount. A technoeconomic analysis comparing semicontinuous bioreactor operation to traditional batch operation showed highly favorable results for resource optimization.

The semicontinuous process for a recombinant biotherapeutic (like butyrylcholinesterase) resulted in a calculated 4–11% improvement in overall resource utilization (COGS) over the traditional batch operation scenarios. However, this optimization requires careful consideration of trade-offs:

• Increased DSP Burden: The smaller, more frequent harvests necessitated by semi-continuous operation require twice as many annual Downstream Processing (DSP) batches. Consequently, the Cleaning-in-Place (CIP) efforts associated with maintaining sterility were 70% higher compared to the batch case.

• Media Optimization: Liquid systems, while requiring more media, allow for improved mass transfers and precise control that may permit the reduction of macro and micronutrient concentrations while maintaining or improving plant health and growth.

This confirms that resource optimization requires not only advanced bioreactor investment but also robust, highly automated DSP infrastructure designed to handle the increased frequency of batches generated by the upstream process.

Designing for Success: Mass Transfer, Shear Stress, and Metabolic Steering

Successful utilization of liquid media in high-density cultures requires addressing fundamental engineering constraints related to mass transfer and the physical fragility of plant cells.

Addressing Mass Transfer and Scaling

When you eliminate the gaseous headspace of a sealed vessel, you create a necessary demand for improved mass transfers of dissolved oxygen and nutrients. This is managed through the precise control of gas supply and mixing within the culture vessel, as seen in the sparger use in ALBs.

However, translating successful small-scale laboratory protocols to commercial volumes requires rigorous process engineering. Scaling up presents challenges because processes optimized at smaller volumes may fail at larger scales due to significant differences in hydrodynamics and mass transfer rates.

Commercial viability relies heavily on developing standardized commercial designs, reliable mathematical models, and effective scaling strategies to account for these complex cell-environment interactions.

Strategies for Secondary Metabolite Production

Bioreactors serve as precision platforms for metabolic engineering and phytochemical production. They enable the successful and uniform application of elicitors—chemical signals used to stimulate plant defense mechanisms—which significantly enhances the production and accumulation of target secondary metabolites.

For instance, jasmonates are extensively utilized in bioreactors to stimulate the synthesis of valuable compounds.

Beyond chemical signaling, bioreactors facilitate precise environmental control to steer metabolic pathways. Control over illumination regimes, including light intensity and spectral quality, is critical. Studies show that varying light conditions significantly impact yield; for example:

• Red light exposure increased flavonoid production in Hyptid marrubiodes.

• White and blue light promoted rutin accumulation in the same species.

This rigorous control maximizes the effectiveness of costly input materials, ensuring the intervention translates into a maximal quantified yield of the high-value product.

The TIB Advantage: How Intermittent Soaking Delivers 10X Growth

The Temporary Immersion Bioreactor (TIB) paradigm represents a brilliant hybrid solution, specifically designed to address the conflicting needs of continuous nutrient supply and essential gas exchange without complex mechanical agitation.

TIB Principles: Dynamic Microenvironment Control

TIBs operate by creating a dynamic environment where plant cultures are intermittently bathed in nutrient-rich liquid media and subsequently exposed to a filtered gaseous atmosphere (air or custom gas mix). This cyclical process, often called "soak and air," maximizes gas exchange for robust growth and prevents pathological conditions like hyperhydricity, which is a major cause of failure in continuous liquid culture.

By avoiding continuous submergence and mechanical agitation, TIBs also minimize mechanical stress. This controlled microenvironment makes TIBs highly successful for both traditional micropropagation and the production of specific compounds.

Quantitative Yield Data and Stability

TIBs exhibit superior performance over traditional agar cultures in terms of yield and acceleration of the multiplication phase. Quantitative evidence supporting this superior efficiency is compelling:

• For Lilium species, the adoption of bioreactors resulted in a 10-fold increase in bulblet growth.

• Date palm propagation rates saw a remarkable 5.5-fold increase using bioreactor technology.

In addition to increased propagation rates, TIBs significantly enhance culture quality and survival. Comparative studies, such as those involving myrtle and olive shoot cultures, showed that the bioreactor environment resulted in higher survival rates and better quality crops compared to standard semi-solid media culture conditions.

A major concern during high-rate micropropagation in liquid media is the potential for somaclonal variation (genetic instability). The data provide confidence: plants produced in bioreactors, such as American ginseng and date palm, have displayed typical phenotypic traits, suggesting maintained genetic fidelity.

The Low-Cost Revolution: Inside the Plant Cell Technology (PCT) Biocoupler® System

The investment required for industrial-scale bioreactors can be significant. This is where innovations like the Plant Cell Technology (PCT) Biocoupler® system shine, offering a highly effective, low-Capital Expenditure (CapEx) entry point into TIB technology.

Design and Non-Powered Operational Mechanics

The PCT Biocoupler® is marketed as the simplest TIB available, a proprietary cap-like device designed to ease the multiplication and rooting stages of tissue culture. It couples any two standard glass jars (ranging from 8 to 32 liquid ounces) with a 70-450 neck finish.

The Biocoupler® achieves its function through passive operation. It performs the necessary mixing and wetting without requiring electricity, complex plumbing, timers, or valves. The immersion cycle is activated simply by manually tilting the device 180 degrees once or twice daily to ensure the plants receive optimal nutrients from the liquid medium in the lower jar. This manual, yet highly efficient, approach is a critical factor in its low-CapEx advantage.

Material and Operational Efficiency

The Biocoupler’s® material specifications are key to its low-maintenance, efficient operation:

• Durability: Constructed from a robust material, the system offers increased resistance to wear and tear and handles high-temperature autoclave cycles (standard 121°C).

• Sterilization Versatility: The Biocoupler® is compatible not only with traditional autoclaving but also with chemical or gas sterilization, and is suitable for microwave oven sterilization, making it exceptionally versatile for home-based or resource-constrained laboratories.

• Aseptic Features: The device is equipped with an integrated vent hole covered by a long-lasting microporous air filter, which allows for crucial air and gas exchange while minimizing contamination risk and equalizing pressure.

Commercial Feasibility

The Biocoupler® represents a significant effort to lower the technological and financial barrier to entry for advanced bioprocessing. By requiring only minimal expertise and readily available glassware (mason jars), it drastically reduces the initial capital expenditure compared to large, proprietary bioreactor systems. This characteristic democratizes TIB technology, allowing small-scale and decentralized facilities to access the efficiency gains that result in plants being two times cheaper to produce than in agar culture.

Ready to Transition from Lab to Factory?

The shift to bioreactor technology is no longer optional; it is the commercial standard for sustainable, high-volume plant tissue culture. Whether you're a small research facility looking for the lowest-CapEx entry point or an industrial operation aiming for high resource optimization, the right intensification strategy is waiting.

The Plant Cell Technology (PCT) Biocoupler® system is the ideal starting point to immediately reduce your labor dependency and increase your multiplication rate with minimal investment. It offers the proven benefits of Temporary Immersion without the complexity.

Take the next step in transforming your plant production efficiency. Visit www.plantcelltechnology.com today to explore the Biocoupler®, specialized plant preservation mixtures (PPM), and a full range of high-quality tissue culture products and services designed to help you transition from the unsustainable effort of agar to the high-yield efficiency of bioprocessing.

Don't let high labor needs continue to cap your growth—intensify your production and secure your commercial future.
